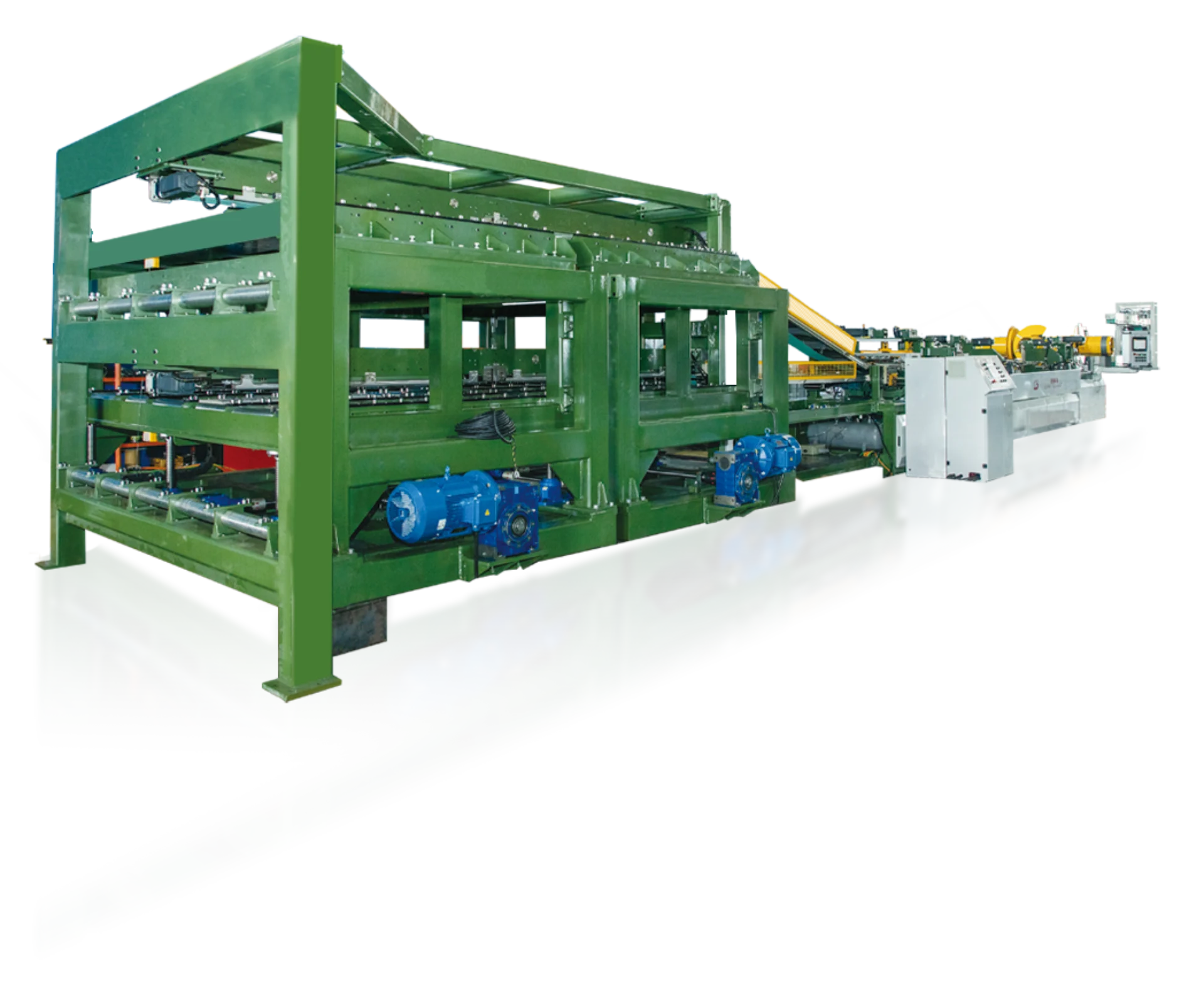

Silicon Steel Sheet Cut-To-Length Line SRHJ400-214G
SRHJ400-214G
Silicon steel sheet cut-to-length line featuring a non-stop pre-stacking system. Two pressing-down mechanisms (front/rear) and four pre-stacking tables work alternately, enabling continuous pre-stacking without slowing down or stopping shearing.
Proven in Production
Stability You Can Build Your Line Around
Performance that holds up long after installation
Non-Stop Pre-Stacking
Front and rear pressing-down mechanisms alternate automatically—shearing never waits.4-Table System
Two sets of tables (front/rear) move transversely and lift into holding position in continuous cycles.High-Takt Throughput
Continuous cycling boosts line productivity for demanding production schedules.Precision Servo Drive
Servo-controlled feeding ensures repeatable sheet length within ±0.15 mm.Low Burr Cutting
Shear burr held below 0.02 mm protects lamination quality and core efficiency.Long Tool Life
Punching tools exceed 200,000 cuts; shearing tools last over 1,000,000 cycles.
Proven in Production
Silicon Steel Sheet Cut-To-Length Line SRHJ400-214G Core Specifications
Sheet Thickness
Processes 0.18-0.35 mm sheets with continuous non-stop pre-stacking
Max Feeding Speed
Reaches 220 m/min with alternating front/rear pre-stacking tables
Cutting Length Accuracy
Maintains ±0.15 mm tolerance through precision servo-driven feeding
Shear Burr
Controls burr to under 0.02 mm for optimal core magnetic performance
Machine Overview
Designed for Real Production Environments
A closer look at structure, layout, and build quality — beyond surface details
Main Technical Parameters
| Parameter | Value |
|---|---|
| Thickness of sheet (mm) | 0.18-0.35 |
| Width of sheet(mm) | 50-420 |
| Length of sheet (mm) | 400-2500 |
| Feeding speed(m/min) | 0-220 |
| Accuracy of cutting length(mm) | ±0.15 |
| Accuracy of cutting angle(°) | ±0.05 |
| Shear burr error(mm) | <0.02 |
| Service Life of Punching Tool(10,000 times) | >20 |
| Service Life of Shearing Tool(10,000 times) | >100 |
| Expansion&Contraction Range of Mandrel(mm) | 470-520 |
| Installed Capacity(kW) | 45 |
| Operating Power Consumption(kW) | 22 |
| Compressed Air Consumption (L/min) | 35 |
Primary Configuration
| Parameter | Value |
|---|
Consumable Spare Parts
| Parameter | Value |
|---|
TURNKEY SOLUTIONS
Higher Output. Lower Loss. Stable Quality.
A line is only valuable if it stays stable. We design for uptime, repeatable accuracy, and serviceability—so you protect yield, delivery schedules, and ROI.
