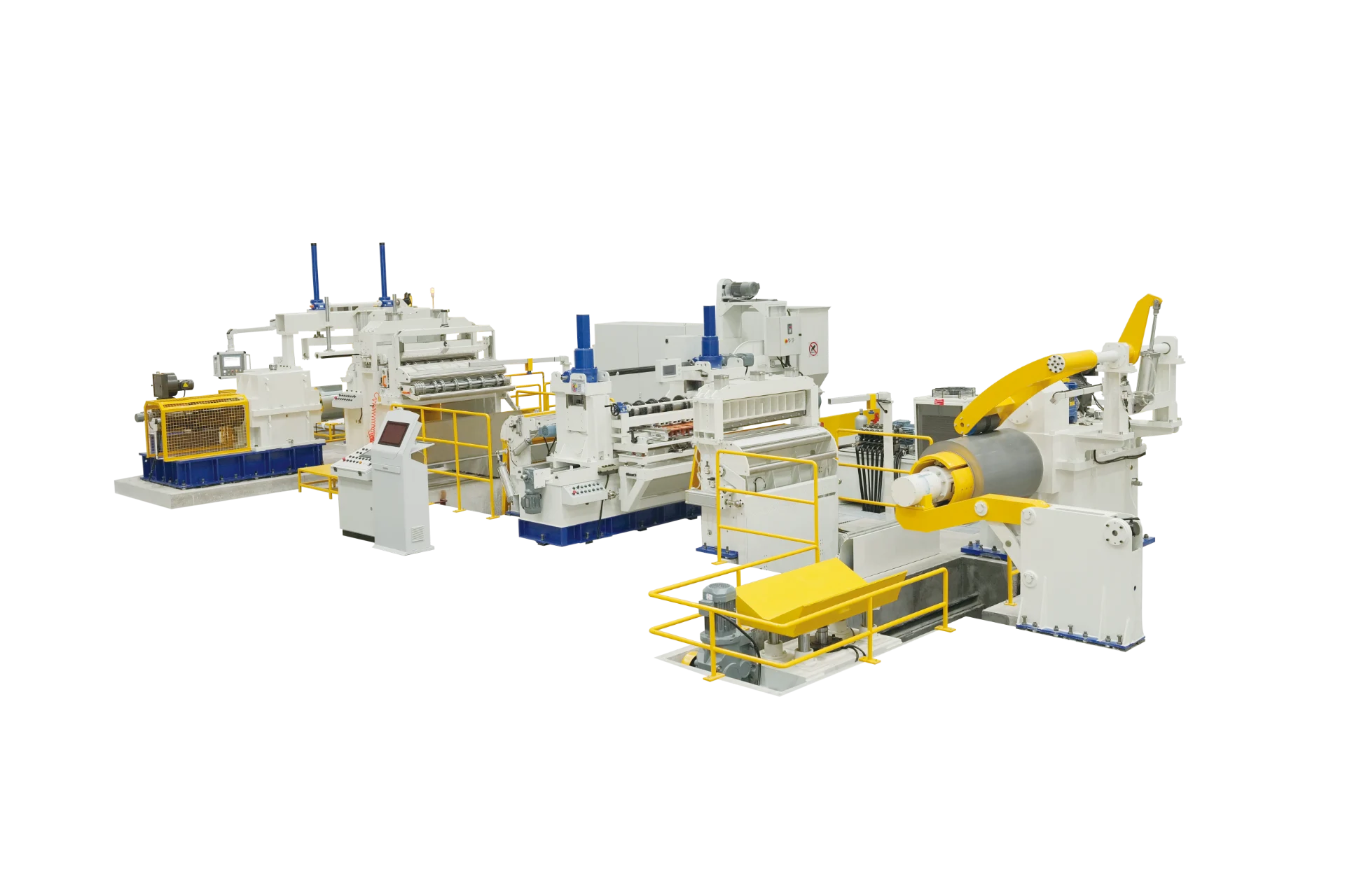

Silicon Steel Coil Slitting Line SRZJ1250
SRZJ1250
Silicon steel coil slitting line that slits coils into strips of specified width and rewinds them under controlled tension. Built for high precision, stable operation and efficient production.
Proven in Production
Stability You Can Build Your Line Around
Performance that holds up long after installation
Pulling & Slitting Tech
Ensures clean, high-precision slit edges with minimal camber or burr.1/10,000 Deflection Design
Main shaft engineered for extreme rigidity—strip width stays consistent coil after coil.Hybrid Drive System
Electric + pneumatic + hydraulic actuators in a practical layout for easy operation.Servo Knife Adjustment
Center distance sets automatically—no manual measuring or trial cuts needed.Double Pressing Device
Maintains consistent tension on both wide and narrow strips throughout rewinding.Auto Coil Loading
Material trolley handles coil loading, unwinding, and centering without crane dependency.
Proven in Production
Silicon Steel Coil Slitting Line SRZJ1250 Core Specifications
Strip Width
Slits coils into strips from 40 to 400 mm wide for various core designs
Sheet Thickness
Handles 0.18-0.35 mm silicon steel with high-rigidity slitting mechanism
Max Feeding Speed
Achieves 220 m/min with servo-controlled knife positioning
Shear Burr
Maintains burr below 0.02 mm using pulling and slitting technology
Machine Overview
Designed for Real Production Environments
A closer look at structure, layout, and build quality — beyond surface details
Main Technical Parameters
| Parameter | Value |
|---|---|
| Thickness of sheet (mm) | 0.18-0.35 |
| Width of sheet(mm) | 40-400 |
| Feeding speed(m/min) | 0-220 |
| Shear burr error(mm) | <0.02 |
| Max Load of De-coiler(Kg) | 5000-25000 |
| Max Load of Re-winder(Kg) | 5000-10000 |
| Expansion&Contraction Range of Mandrel(mm) | 470-520 |
| Installed Capacity(kW) | 45 |
| Compressed Air Consumption(L/min) | 25 |
Primary Configuration
| Parameter | Value |
|---|
Consumable Spare Parts
| Parameter | Value |
|---|
TURNKEY SOLUTIONS
Higher Output. Lower Loss. Stable Quality.
A line is only valuable if it stays stable. We design for uptime, repeatable accuracy, and serviceability—so you protect yield, delivery schedules, and ROI.
